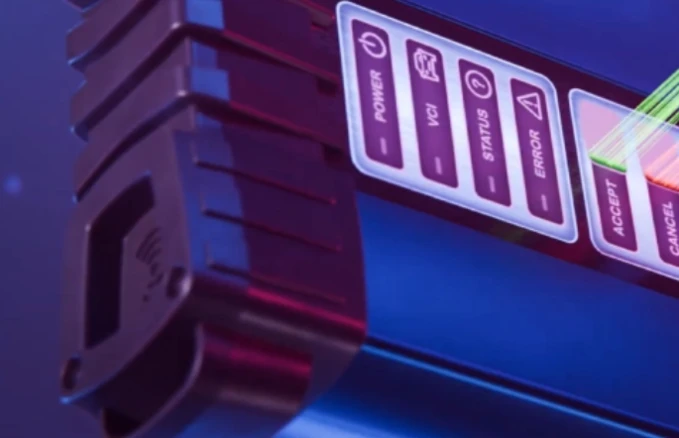

About ELP5 PRO-VCI
ELP5 PRO – VCI is a state-of-the-art interface made to link a host PC/Android based device with a vehicle’s diagnostic connector.
The ELP5 PRO – VCI enables fast, reliable diagnostics, flashing, and complex programming.
It offers two modes: Pass-Thru for vehicle programming or standalone operation with DiagProg® software. With three CAN channels, UART, J1850, and flexible configuration, it supports a wide range of communication protocols for maximum compatibility.
The ELP5 PRO – VCI is equipped with top-tier hardware, making it a robust, efficient, and user-friendly tool for automotive professionals.
About ELP5 PRO-VCI
ELP5 PRO – VCI is a state-of-the-art interface made to link a host PC/Android based device with a vehicle’s diagnostic connector.
The ELP5 PRO – VCI enables fast, reliable diagnostics, flashing, and complex programming.
It offers two modes: Pass-Thru for vehicle programming or standalone operation with DiagProg® software. With three CAN channels, UART, J1850, and flexible configuration, it supports a wide range of communication protocols for maximum compatibility.
The ELP5 PRO – VCI is equipped with top-tier hardware, making it a robust, efficient, and user-friendly tool for automotive professionals.
Modes of operations
Mode 1 – Pass-Thru interface device supporting standards:
J2534-1 Pass-Thru Vehicle Programming API
J2534-2 Optional Pass-Thru Features API (partial)
Mode 2 – Stand-alone device controlled by DiagProg® software running on an Android-based host
Modes of operations
Mode 1 – Pass-Thru interface device supporting standards:
J2534-1 Pass-Thru Vehicle Programming API
J2534-2 Optional Pass-Thru Features API (partial)
Mode 2 – Stand-alone device controlled by DiagProg® software running on an Android-based host
Interface protocols
Interface protocols
ISO 11898 – CAN-FD 5Mbps
ISO 11898-3 – Fault Tolerant CAN
ISO 15765 – Diagnostics on CAN
ISO 13400 – DoIP
ISO 14230 – KWP2000
ISO 14229 – UDS
ISO 9141 – K & L Lines
SAE J2411 – Single Wire CAN
SAE J2818 – KWP1281
SAE J2819 – TP2.0
SAE J2284 – High-Speed CAN
SAE J2740 – GM UART
SAE J1850 – VPW/PWM
SAE J2610 – Chrysler SCI
SAE J2809 – Honda DIAG-H
Chrysler CCD
Hardware Interface
CAN – 3 independent channels
UART – 3 independent serial communication channels
J1850 – 1 channel
Slot for Expansion Board for future/custom standards
Nearly unlimited configuration options support
Custom System Interface
9x Programmable Multifunction Input / Output / Bidirectional pins
Pull-ups, pull-downs, „open-drain”, Schmitt trigger options
SPI, UART, I2C, 1-Wire, JTAG, BDM, High Speed Clock
Operating Voltage Level 2,4V – 5V
HOST Interface
802.11 a/b/g/n/ac WiFi 2.4/5GHz
Bluetooth 4.2 EDR
USB 2.0 Hi-Speed
(USB-C connector)
WiFi Direct
Technical data
PROCESSOR / FPGA
32 BIT ARM-CORTEX A9 1GHz CPU, PLD/FPGA 400MHz
Memory
1GB DDR3L SDRAM
Construction
The device’s design is based on a single PCB, maximally protected against damage.
System Connector
D-SUB25 Connector used for connecting supported external devices. The maximum length of cables connected to the connector is 1m.
Communication
WIFI IEEE 802.11 b/g/n – 2.4GHz
WIFI IEEE 802.11 ac – 5GHz
Bluetooth 4.2 EDR
USB 2.0 Hi-Speed (USB-C)
Nominal Supply Voltage
12VDC
Maximum Current Consumption (with connected supported external devices)
5A
Maximum Current Consumption by the Device (without connected supported external devices)
1A
Maximum Current Limitation of the Power Supply
5A
Exceeding the Allowed Supply Voltage
The device will turn off if the supply voltage exceeds 18V. If a supply voltage higher than 30V is connected, the device will be permanently damaged.
Operating Temperature
0 to 40 °C (32 to 104 °F)
storage Temperature
-20 to 60 °C (-4 to 140 °F)
Dimensions
210mm (8,27”) x 148mm (5,82”) x 45mm (1,77”)
Weight
0,680 kg ( 1,49 lb.)
What’s in the box
ELP5 PRO – VCI set includes:
ELP5 PRO – VCI
Vehicle Communication Interface
OBDII Connector
USB Cable
Power adapter
Transport case
What’s in the box
ELP5 PRO – VCI set includes:
ELP5 PRO – VCI
Vehicle Communication Interface
OBDII Connector
USB Cable
Power adapter
Transport case
